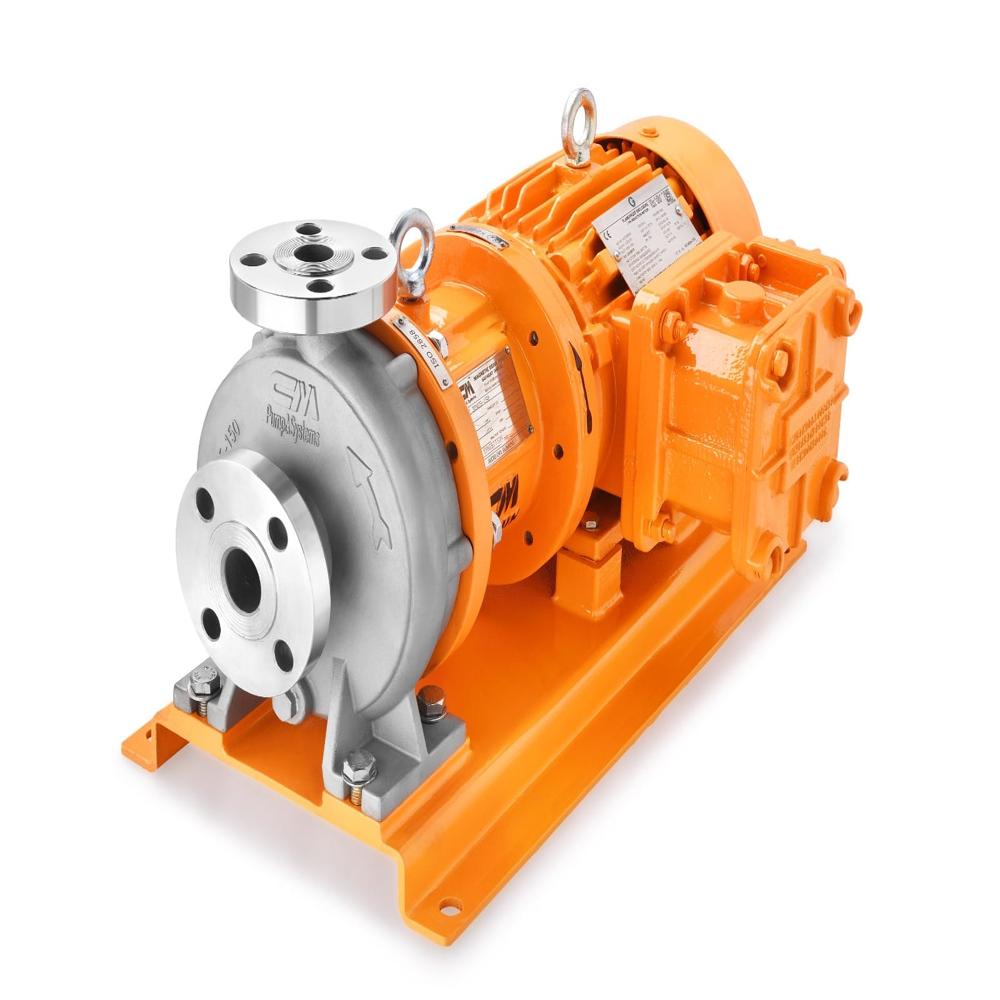

SS Magnetic Drive Chemical Process Close Coupled Pump

Advanced Magnetic Drive Technology

Our pump utilizes magnetic drive mechanisms to eliminate the need for mechanical seals, significantly reducing the risk of leaks. This innovative design enhances operational safety, making it ideal for transferring hazardous or corrosive chemicals in sensitive industries like pharmaceuticals and chemicals.

Durable Stainless Steel Construction

Manufactured from high-grade stainless steel, this pump provides exceptional resistance to corrosion and abrasion. It stands up to aggressive chemicals and continuous operation, offering long-term reliability even in the most challenging environments.

Tailored for the Pharmaceutical and Chemical Industries

With its state-of-the-art features, our pump is purpose-built for critical fluid-handling tasks in pharmaceutical and chemical plants. The flooded suction type ensures optimal performance, while its impressive flow rate caters to large-scale industrial needs.

FAQs of SS Magnetic Drive Chemical Process Close Coupled Pump:

Q: How does the magnetic drive system in this pump work?

A: The magnetic drive system uses powerful magnets to transmit rotation from the motor to the pump impeller without a direct mechanical shaft seal. This design prevents leakage of hazardous chemicals and improves safety during operation.

Q: What advantages does the stainless steel construction provide?

A: Stainless steel construction offers high resistance to corrosion and chemical attack, ensuring longevity and reliability when handling aggressive media frequently found in pharmaceutical and chemical processes.

Q: When should a flooded suction pump be preferred in industrial applications?

A: A flooded suction pump is preferred when handling liquids that must be readily available at the pump inlet, minimizing the risk of cavitation and ensuring consistent, reliable performance in continuous industrial operations.

Q: Where is the SS Magnetic Drive Close Coupled Pump commonly used?

A: This pump is primarily used in pharmaceutical and chemical manufacturing plants across India, where dependable handling of corrosive, toxic, or sensitive fluids is essential for safe and efficient production processes.

Q: What is the maximum flow rate this pump can achieve?

A: The SS Magnetic Drive Close Coupled Pump can handle a maximum flow rate of up to 100 cubic meters per hour (m3/h), making it suitable for both large-scale and demanding industrial applications.

Q: How does using a magnetic drive pump benefit the process industry?

A: Magnetic drive pumps reduce the possibility of leaks, lower maintenance costs, and ensure higher safety levels, making them especially valuable for industries where fluid purity and containment are critical.

Q: Who manufactures and supplies this pump in India?

A: We are a leading manufacturer and supplier of SS Magnetic Drive Chemical Process Close Coupled Pumps in India, offering comprehensive support and product customization for your specific industrial requirements.

Product Brochure

एसएस मैग्नेटिक ड्राइव केमिकल प्रोसेस क्लोज कपल पंप

150000.0 आईएनआर/टुकड़ा

मूल्य/उद्धरण प्राप्त करें

उत्पाद विवरण:

फ्लो रेट अधिकतम.
फ़्रिक्वेंसी हर्ट्ज (एचजेड)
उपयोग फार्मास्युटिकल उद्योग, रसायन उद्योग
मटेरियल स्टेनलेस स्टील
प्रॉडक्ट टाइप युग्मित पंप बंद करें
सक्शन टाइप बाढ़ सक्शन
अधिक देखने के लिए क्लिक करें
अपना उत्पाद साझा करें:

वापस कॉल करने का अनुरोध जांच भेजें

एसएस मैग्नेटिक ड्राइव केमिकल प्रोसेस क्लोज कपल पंप मूल्य और मात्रा

न्यूनतम आदेश मात्रा 1
माप की इकाई टुकड़ा/टुकड़े
मूल्य की इकाई टुकड़ा/टुकड़े

एसएस मैग्नेटिक ड्राइव केमिकल प्रोसेस क्लोज कपल पंप उत्पाद की विशेषताएं

मटेरियल स्टेनलेस स्टील
प्रॉडक्ट टाइप युग्मित पंप बंद करें
फ़्रिक्वेंसी हर्ट्ज (एचजेड)
उपयोग फार्मास्युटिकल उद्योग, रसायन उद्योग
फ्लो रेट अधिकतम.
सक्शन टाइप बाढ़ सक्शन

एसएस मैग्नेटिक ड्राइव केमिकल प्रोसेस क्लोज कपल पंप व्यापार सूचना

भुगतान की शर्तें कैश इन एडवांस (CID)
आपूर्ति की क्षमता 50 प्रति महीने
डिलीवरी का समय 30 दिन
मुख्य घरेलू बाज़ार ऑल इंडिया

उत्पाद वर्णन

For the effective transmission of corrosive chemicals in industrial applications, turn to the SSmagnetic drive chemical process close coupled pump. The pumps strong permanent magnet drive eliminates the need for a mechanical seal, making it safe and dependable. It is built from a sturdy stainless-steel shell. Our offering has a high efficiency motor and has a 19 litres per minute maximum flow rate capacity. It also includes a variety of control capabilities, including programmable temperature, pressure, and speed settings. A dependable and affordable option for the transport of a variety of chemicals is SSmagnetic drive chemical process close coupled pump.

Features

Single Stage, Horizontal Centrifugal Pump.
Hydraulic Performance and Dimensions according to DIN EN ISO 2858
Technical design based on DIN EN ISO 15783
Permanent Magnet Drive
Maintenance Free
Separation of Liquid Chamber to Atmosphere by Means of Isolation Shell
Slipless Power Transfer
Materials : Steel, Stainless Steel, Nickel Based Materials
Close Coupled Block Design
Hydraulically balanced impeller for minimum bearing loads
Product-Lubricated Journal Bearings; made of Silicon Carbide (SSiC) or Customized Materials

Operation Range

Flow Rate : max. 100m /h3
Delivery Head : max. 100 metre
Pressure Rating : Class 150
Temperatures : -35 degree C to +250 degree C
Kinematic viscosities : 0.5 to 350 mm /s

Technical data

Stainless steel SS 316, SS 316L, SS 304, SS 304L Other materials duplex alloys , nickel-base alloys (e.g. Hastelloy )

Working Principle	Radial flow pump
Stages	Single stage
Priming Method	Flooded suction
Sealing System	Magnetic coupling
Standards	DIN EN ISO 2858 /ANSI
Standards	DIN EN ISO 15783 /ANSI
ATEX	2014/34/EU

2 POLE (2900 RPM)

Pump Model
	inlet mm	outlet mm	impeller (nominal) mm	Q m³/h	H m	Pump				Support							Motor
	inlet mm	outlet mm	impeller (nominal) mm	Q m³/h	H m	a	f	h1	h2	h3	m1	m2	m3	n1	n2	S1	hp	kw	rpm	amps
	25	25	125	4	20	82	425	112	142	340	465	405	62	300	270	16	1	0.75	2900	1.6
	32	25	125	5	20	82	475	112	142	340	465	405	62	300	270	16	1.5	1.1	2900	2.3
	32	25	150	5	30	82	475	112	142	340	465	405	62	300	270	16	2	1.5	2900	3.1
	50	32	125	12.5	20	80	665	112	140	338 380 430	604	554	46	338	308	16	3/5	2.2/3.7	2900	4.3/7
	50	32	160	12.5	32	80	665	132	160		604	554	46	338	308	16	5/7.5	3.7/5.5	2900	7/10
	50	32	200	12.5	50	80	720	160	180		700	675	50	350	320	16	10/12.5	7.5/9.3	2900	13.7/16.5
	50	32	250	12.5	80	100	800	180	225	490	700	675	50	400	370	16	15/20	11/15	2900	19.3/26
	65	40	125	25	20	80	665	112	140	338	604	554	46	338	308	16	5/7.5	3.7/5.5	2900	7/10
	65	40	160	25	32	80	665	132	160	380	604	554	46	338	308	16	7.5/10	5.5/7.5	2900	10/13.7
	65	40	200	25	50	100	800	160	180	430	700	675	50	350	320	16	12.5/15	9.3/11	2900	16.5/19.3
	65	40	250	25	80	100	850	180	225	500	750	700	50	450	410	16	20/30	15/22.5	2900	26/37.5/
	80	50	125	50	20	100	700	132	160	380	650	600	50	338	308	16	7.5/10	5.5/7.5	2900	10/13.7
	80	50	160	50	32	100	800	160	180	430	650	600	50	338	308	16	12.5/15	9.3/11	2900	16.5/19.3
	80	50	200	50	50	100	900	160	200	470	750	700	50	450	410	16	20/30	15/22.5	2900	26/37.5

4 POLE (1450 RPM)

Pump Model				Nominal duty point
	inlet mm	outlet mm	impeller (nominal) mm	Q m³/h	H m	Pump				Support							Motor
	inlet mm	outlet mm	impeller (nominal) mm	Q m³/h	H m	a	f	h1	h2	h3	m1	m2	m3	n1	n2	S1	hp	kw	rpm
	25	25	125	2	5	82	400	112	142	340	440	400	62	300	270	16	0.25	0.18	1450	0.56
	32	25	125	3	5	82	400	112	142	340	440	400	62	300	270	16	0.25	0.18	1450	0.56
	32	25	150	3	10	82	450	112	142	340	440	400	62	300	270	16	0.5	0.37	1450	1
	50	32	125	6.3	5	80	600	112	140	338	580	530	46	338	308	16	0.5	0.37	1450	1
	50	32	160	6.3	8	80	600	132	160	380	580	530	46	338	308	16	1	0.75	1450	1.7
	50	32	200	6.3	12.5	100	600	160	180	430	650	600	50	350	320	16	1.5	1.1	1450	2.4
	50	32	250	6.3	20	100	650	180	225	490	650	600	50	400	370	16	3	2.2	1450	4.3
	65	40	125	12.5	5	80	600	112	140	338	580	530	46	338	308	16	1	0.75	1450	1.7
	65	40	160	12.5	8	80	600	132	160	380	580	530	46	338	30	16	1.5	1.1	1450	2.4
	65	40	200	12.5	12.5	100	600	160	180	430	650	600	50	350	320	16	2	1.5	1450	3
	65	40	250	12.5	20	100	650	180	225	500	650	600	50	450	410	16	4	3	1450	7.8
	80	50	125	25	5	100	650	132	160	380	580	530	50	338	308	16	1.5	1.1	1450	2.4
	80	50	160	25	8	100	700	160	180	430	580	530	50	338	308	16	2	1.5	1450	3
	80	50	200	25	12.5	100	750	160	200	470	650	600	50	450	410	16	4	3	1450	7.8

Technical Details

FAQs of SS Magnetic Drive Chemical Process Close Coupled Pump:

Q: How does the magnetic drive system in this pump work?

Q: What advantages does the stainless steel construction provide?

Q: When should a flooded suction pump be preferred in industrial applications?

Q: Where is the SS Magnetic Drive Close Coupled Pump commonly used?

Q: What is the maximum flow rate this pump can achieve?

A: The SS Magnetic Drive Close Coupled Pump can handle a maximum flow rate of up to 100 cubic meters per hour (m3/h), making it suitable for both large-scale and demanding industrial applications.

Q: How does using a magnetic drive pump benefit the process industry?

Q: Who manufactures and supplies this pump in India?

Tell us about your requirement

Price: Â

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

मोबाइल number

सीजेड सीरीज पंप अन्य उत्पाद

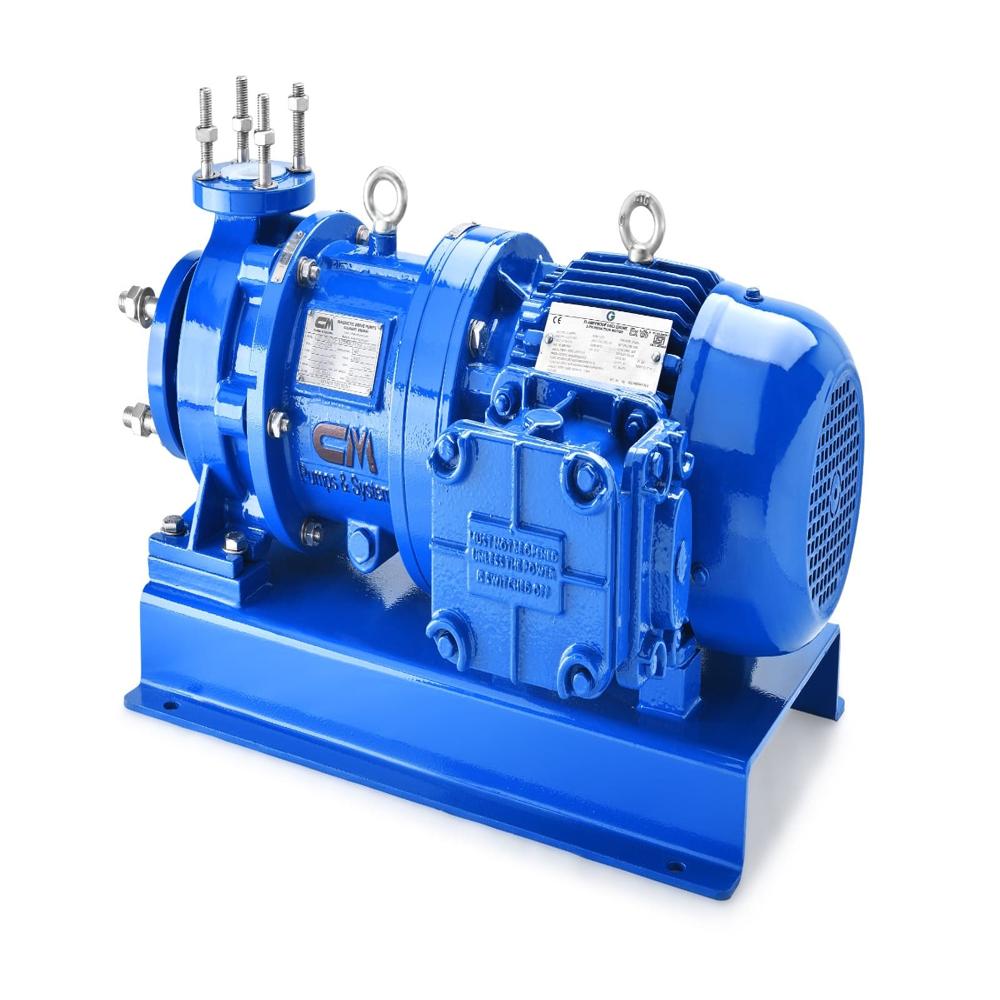

PFA Lined Sealless Magnetic Drive Chemical Process Pump

पीएफए लाइनेड सीलेस मैग्नेटिक ड्राइव केमिकल प्रोसेस पंप न्यूनतम आदेश मात्रा : 1 मटेरियल : स्टेनलेस स्टील प्रॉडक्ट टाइप : रासायनिक प्रक्रिया पंप स्टैण्डर्ड : दीन एन आईएसओ 2858 फ्लो रेट : अधिकतम. मूल्य या मूल्य सीमा : आईएनआर सक्शन टाइप : बाढ़ सक्शन माप की इकाई : टुकड़ा/टुकड़े मूल्य की इकाई : टुकड़ा/टुकड़े फ़्रिक्वेंसी : हर्ट्ज (एचजेड) सील का प्रकार : चुंबकीय युग्मन

जांच भेजें

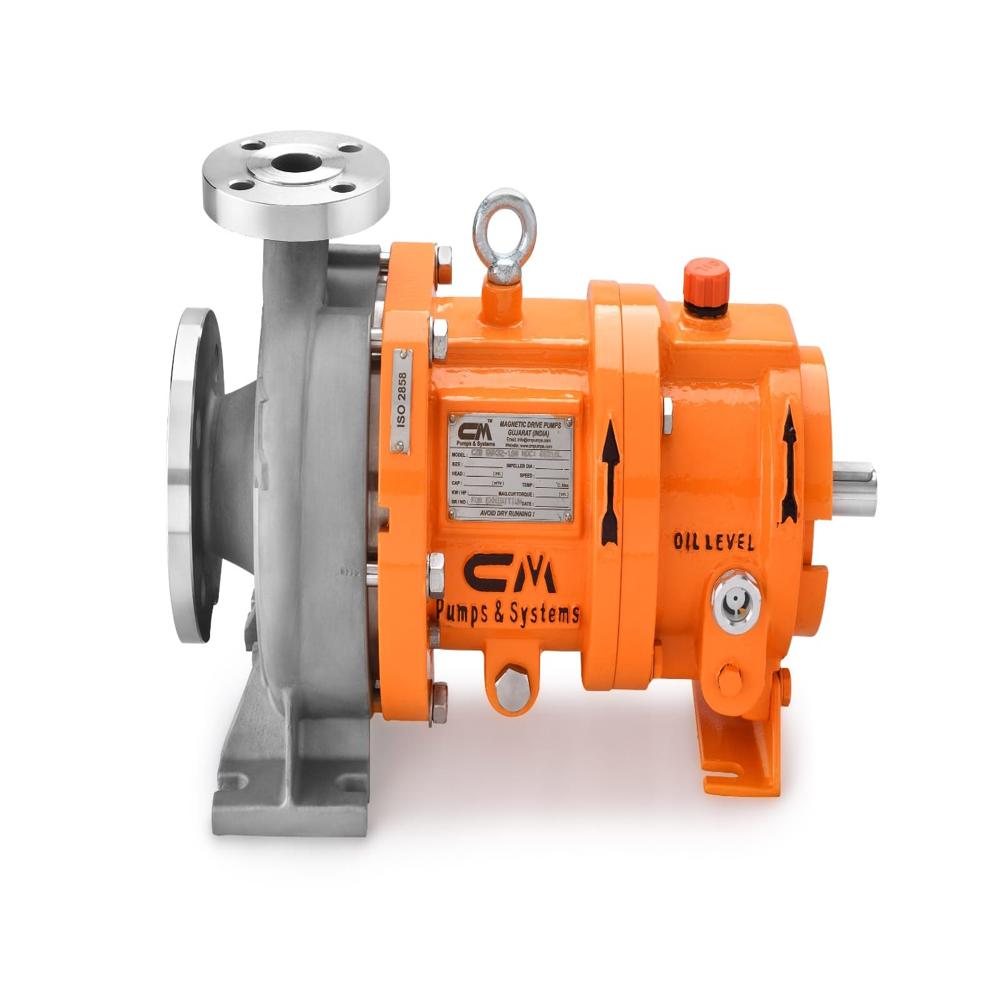

Sealless Magnetic Drive Chemical Process Close Coupled Pump
